MV LENS- Zoom LENS

UAI-MV1236C-3MP

* Manual Zoom
* C Mount
* HD
*SIZE: Φ37.5*62 mm
* Weight: 150.1 g
* RoHs
DETAIL
                                                                   UAI-MV1236C-3MP

* C Mount    * 3 Mega Pixsel   * Manual Zoom with Lock *
Manual IRIS *
Category Parameters Unit
Color Black
Focal Length 12-36 mm
Materail of Housing Aluminum + 13G
Distortion < 1% %
Format 1/1.8"
 Back Focal Length 17.53 mm
Aperture F2.0
Range of Focus 0.3 M
Mount C
D/H/V 38.7*33.67*25.3°
14*11.22*8.45°
Iris Manual/ with Lock
Zoom Manual/ with Lock
MTF 3  Mega Pixel Pixel

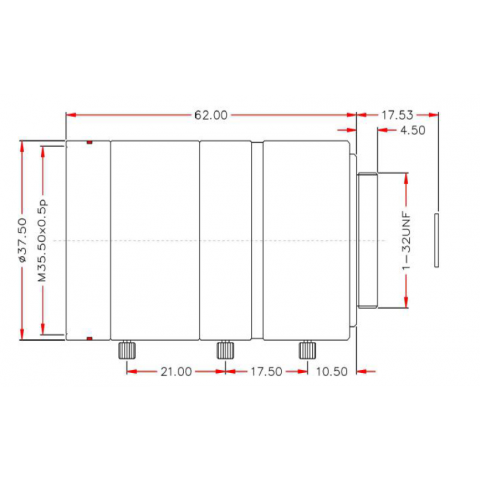

Dimension Φ37.5*62

mm
Weight 150.1g g



~Specification is subject to change without any notice.~
