FA LENS

UAI-FA10035-8 MP

* FA LENS
* C Mount
* 8 MEGA Pixel

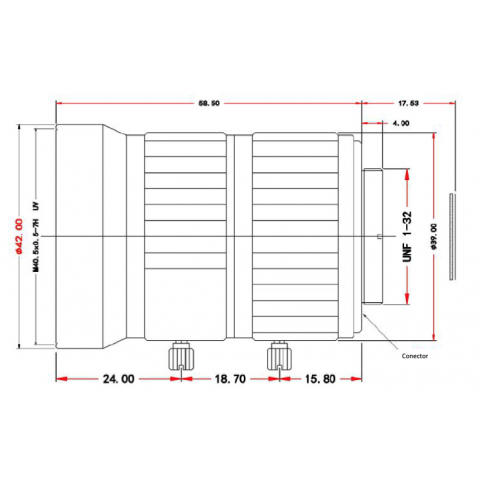

*SIZE: Φ42x58.50 mm
* Weight: 160 g
* RoHs
DETAIL
                                                                   UAI-FA10035- 8 MP

* C Mount    * 8 Mega Pixsel   * Fixed Zoom  *
Manual IRIS
Category Parameters Unit
Color Black
Focal Length 100 mm
Materail of Housing Aluminum
Distortion -0.025 %
Format 1, (Φ16 mm)
Filter Size M40*0.5P
Aperture F3.5
Range of Focus 2m ( + 7.0m ) M
Mount C
Optical Length 74.35 mm
            H/V 1" 7.27°x5.53°
2/3" 5.00°x3.80°
1/2" 3.70°x2.80°
Iris Manual
Zoom Fixed
MTF 8 M Pixel
Dimension Φ42x58.50 mm
Weight 160 g g



~Specification is subject to change without any notice.~
